7° Wedge Angle Footwear Testing Equipment Slip Resistance Tester 290kg Weight
Product Description
The Slip resistance tester is used to measure the coefficient of friction(CoF) of footwear and the slip resistance performance of outsole, forepart and heel can be evaluated accordingly.
The Principle
The item of footwear to be tested is put on a surface, subjected to a given normal force, and moved horizontally relative to the surface( or the surface is moved horizontally relative to the item of footwear). Both the frictional force and normal force are measured and the dynamic CoF is calculated
Feature
1. Smart hardware control system with closed-loop control system capability.
2. The slipping device is driven by a high power servo motor, that can speed up to a specified value in a short time.
3. A variety of safety protection designs and warning signs, an emergency stop button is installed on the conspicuous place of the panel to ensure the safety of the operator's life.
4. The software can read test data curves, compare results, switch units, etc.
Standard: ISO 13287, GB/T 28287, ASTM F2913, SATRA TM 144, ISO 24267 ISO 20344 5.11
Standard Parameter
| Model | HD-P936 |
| Load cell capacity | Vertical load cell:100kg*1 Horizontal load cell: 100kg*2 |
| Vertical pressure | 500±25N(UK size≥6.5) 400±20N(UK size＜6.5) |
| Control Method | Computer with software |
| Sliding speed | 0.3±0.03m/s |
| Test normal force | 500±25N, For footwear of European size 40 (UK size 6.5) and above |
| 400±20N, For footwear of European size below 40 (UK size 6.5) |
| Wedge angle | 7° |
| Dimension | 175×65×170 cm(W×D×H) |
| Weight | 290kg |
| Test conditions for slip resistance | Ceramic plate -SRA Steel plate -SRB |

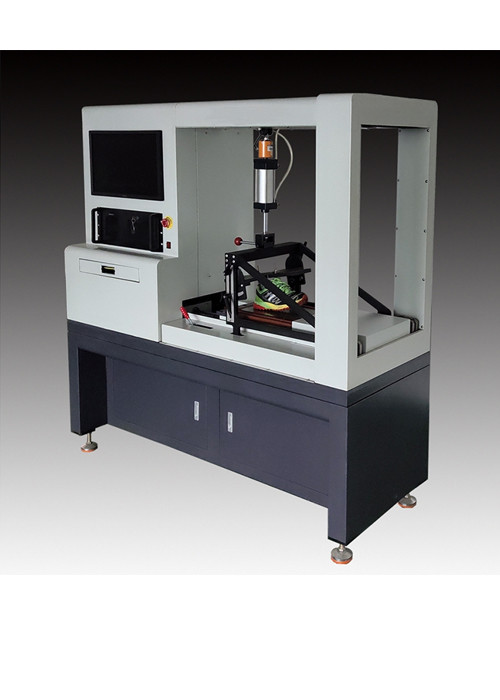

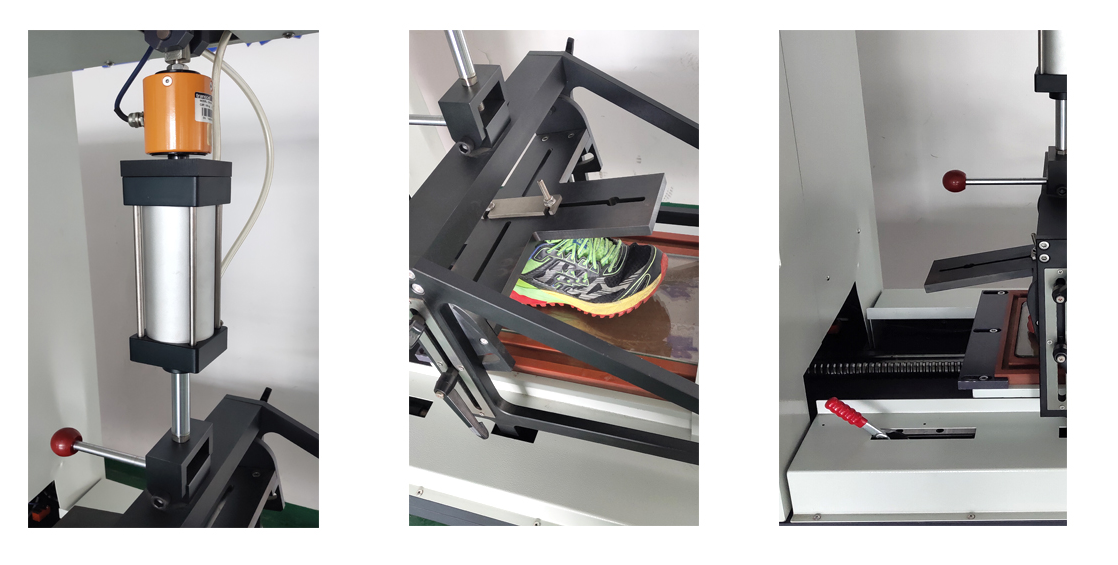

Slip Resistance Tester Image
