SATRA TM25 Vamp Telescopic Tester Footwear Testing Equipment LCD 999 Counter

Brand Name : HAIDA

Model Number : HD-P814

Certification : CE,ISO

Place of Origin : Guangdong, China (Mainland)

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Supply Ability : 30 Sets per Month Haida

Delivery Time : 20 days after order confirmed

Packaging Details : ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Test piece size : (64 x 64)mm

Number of test pieces : 12 pieces

Fixture close distance : 9.5+1.0) mm

Counter : LCD 0~999.999

Machine Size : (LxWxH)785x460x320mm

Volume : approx. 550x350x 300 mm

Contact Now

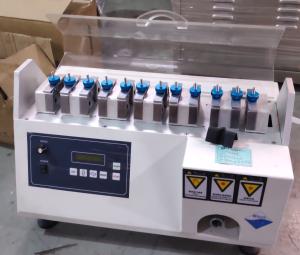

SATRA TM25 Vamp Telescopic Tester Footwear Testing Equipment LCD 999 Counter

INTRODUCTION

Vamp Telescopic Tester is a continuous telescopic quick action. It is used to simulate walking to observe how much the upper of the shoes is squeezed, stretched, folding and bent.

STANDARD

SATRA TM25, BS 3429, IS0-4643 etc.

STANDARA FEATURE

Test piece size (64 x 64)mm
Number of test pieces 12 pieces
Fixture close distance (9.5+1.0) mm
Counter LCD0~999.999
Fixture V-shaped, angle horse (40±11° top radius room (6.4+0.5) mm arc shape
Machine Size (LxWxH)785x460x320mm
Motor AC 300W
Telescopic speed (300 + 30) cpm
Volume approx. 550x350x 300 mm
moving clamp stroke (19 soil 1.5) mm
weight approx. 200kg
Separation distance of the clamp (28.5+2.51 mm
Power supply 1∮,AC220V, 5A.


SATRA TM25 Vamp Telescopic Tester Footwear Testing Equipment LCD 999 Counter SATRA TM25 Vamp Telescopic Tester Footwear Testing Equipment LCD 999 Counter

FAQ


How to install and use the product?

The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.

How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.

What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
